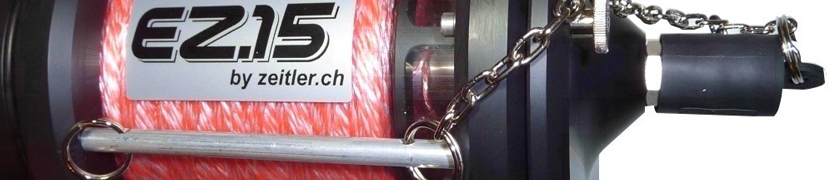

The Stringing Gun EZ15
The Stringing Gun EZ15 by Zeitler was especially designed to feed pull line in micro-ducts Ø 4 to 20 mm (internal diameter) on short distances (up to 500 m).
It replaces the classic fishtape and in only 30 seconds the pull line finds its way floating on air through a 500 m conduit.
Facts
|
|
|
|
 |
|
- To blow special pull line into micro-ducts
(internal diameter from 4 to 20 mm)
- For fiber optics technology
- Installations in the range of private houses, office and industrial buildings
|
EZ15 Stringing Gun |
|
- Ideal for short distances e.g. junction box to home
|
EZ15 Complete set |
|
- Easy to handle
- Lightweight and compact
- Ready for use in seconds
- For use with a standard commercial compressor 200-300l/min
(not included in scope of delivery)
- Fast feeding (500 m in 20 s)
- Excellent accessibility, even in confined spaces
- Equiped with safety valves and overpressure protection
- Fits in any car boot
|
|
|
|
|
|
|
Application (short guide)
- Choose tube coupling according to duct diameter
- Connect micro-duct to chosen tube coupling
- Thread special pull line into micro-duct
- Connect tube coupling to EZ15
- Switch on compressor
- Connect pneumatic hose to EZ15
- Observe uncoiling of pull line in cylinder
- Pull line leaves micro-duct
- Uncouple pneumatic hose from EZ15
- Uncouple tube coupling from micro-duct
- Cut off special pull line
- Link cable to pull line
Equipment

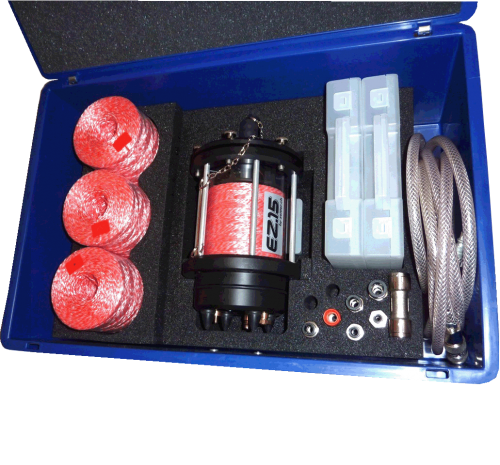

Standard equipment in strong plastic case
|

|
|
- 1 x Stringing Gun EZ15
- 1 x tube coupling for each outer diameter 6, 8, 10, 12
and 14 mm (other dimensions on request)
- 1 x compressed air hose (3 m length)
- 1 x universal hose Attachement
(base + multi nozzle for internal diameter 13 - 20 mm)
- 1 x T-fitting
- 1 x box with spare parts ans sissors
- 4 x special pull line rolls ( Ø 1 mm, tensile strength
approx. 24 kg, roll approx. 900 m)
|


Compressor Line Stopper Hose for compressed air (3m)

special pull line tensile Lubriball (10 pieces/package) Blue gliss 125ml
strength 24 kg Cleaning and lubricating ball special lubricant to help pulling
box of 10 rolls for microducts Ø 7-12 mm the fiber optics cable through the micro-duct
