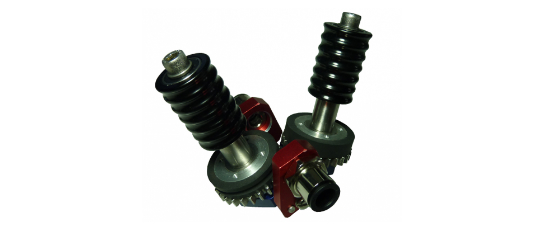

EZ.SPEEDY

Zeitler cable feeding tool

EZ.SPEEDY is the perfect tool for feeding fiber optic cables (ø 0.5 mm to 8.0 mm) into micro-tubes. Connect the EZ.SPEEDY to a standard cordless drill and start feeding fiber optic cables quickly and safely (without bending) into micro-ducts.Insertion length up to 500 m.

In connection with the EZ.BOOSTER the cable can be inserted even more smoothly and evenly.

Facts:

-Tool to insert fiber optic cable (ø 0.5 mm -  8.0 mm) into micro-ducts

-Fast, easy and safe (no bending)

-Easy to handle

-To be used with a cordless drill

-Insertion length up to  500 m

-Lightweight and compact

-Ready for use in seconds

-Perfect indoor solution

 Standard equipment in strong plastic case:

    Application (short guide):

   -Select and assemble rubber roller according to cable dimension.(appropriate cable

    dimension is stamped into aluminum ring of rubber roller)

    -Select and assemble cable guide according to cable dimension

    -Screw on the tube coupling

    -Connect to micro-duct

    -Fit hex bit holder to cordless drill

    -Controle/select speed torque

    -Insert fiber optic cable through cable guide (insert approx. 1 m)

    -Close EZ.SPEEDY handles

    -Fit cordless drill to one of the hex screws and start operating the drill

    -Cable will be pushed into micro-duct

Choose the appropriate for you cable diameter:

EZ.SPEEDY 0,5 -1mm

EZ.SPEEDY 1 - 2mm

EZ.SPEEDY 2 - 3mm

EZ.SPEEDY 3 - 4mm

EZ.SPEEDY 4 - 5mm

EZ.SPEEDY 5 - 6mm

EZ.SPEEDY 6 - 7mm

EZ.SPEEDY 7 - 8mm
