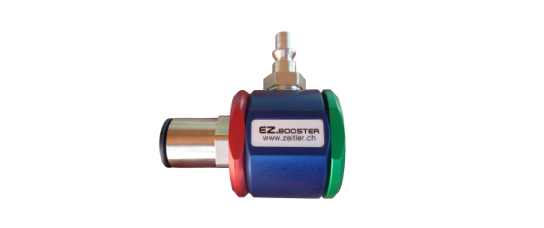

EZ.BOOSTER
Zeitler cable feeding tool
Tool for pressed air-aided insertion of fiber optic cables (diameter 0.5 mm to 8.0 mm) in micro-ducts. With the EZ.BOOSTER connected to a standard compressor you have a simple and easy way to feed fiber optic cables quickly and safely into micro-ducts. Insertion length up to 500 m.
In combination with the EZ.SPEEDY perfomance can even be improved.
Standard equipment in strong plastic case:
Complete set EZ.BOOSTER in strong plastic case
Application (short guide):
Select and assemble rubber discs according to cable dimension
Select and assemble entrance plate (green) according to cable dimension
Screw on tube coupling
Connect micro-duct to EZ.BOOSTER
Insert fiber optic cable into EZ.BOOSTER (approx. 1 m)
Connect pressed air hose to EZ.BOOSTER and switch on compressor
Push fiber optic cable step by step and smoothly into micro-duct.
Choose the appropriate for you cable diameter:
EZ.BOOSTER 0,5 -1mm
EZ.BOOSTER 1 - 2mm
EZ.BOOSTER 2 - 3mm
EZ.BOOSTER 3 - 4mm
EZ.BOOSTER 4 - 5mm
EZ.BOOSTER 5 - 6mm
EZ.BOOSTER 6 - 7mm
EZ.BOOSTER 7 - 8mm
