EZ300

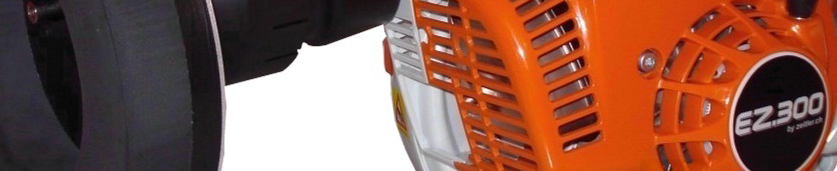

Zeitler Stringing Gun EZ300

The Stringing Gun EZ300 by Zeitler needs no electrical connection. The strong fuel engine feeds the pull line independent of power supply.

The EZ300 is used for network construction in civil engineering, ground work, roads, tunnels, bridges, snow cannons and cable car construction.

It replaces the classic fishtape and it is suitable for cable ducts Ø 25 to 200 mm (internal diameter).

Water, small residues, impurities or else can often be pushed through with the shuttle in only one operation.

Facts

		Blow or suck pull line (tensile strength up to 300 kg) without compressor Independent of electric power supply For all commercial pipe work (internal diameter from 25 to 200 mm) For all network construction such as civil engineering, ground work, roads, tunnels, bridges, snow cannons, cable car construction, mountain railway For lengths of 1000 m and more (current record 2’850 m)
EZ300 Stringing Gun		Huge time saving in cable feeding
		Cleaning, taking water out, calibrating and line feeding in one step
EZ300 Complete set		Lightweight and compact Excellent accessibility, even in confined spaces Easy to handle Double function (blowing and suction mode) Suitable in any car boot Value for money

Application (short guide)

Conduit ends must be clean and cut off evenly
Fix head piece or special equipment corresponding to the internal diameter of conduit
Firstly, blow through the conduit without shuttle, check if penetrable conduit/correct conduit
Assemble shuttle corresponding exactly to the internal diameter of conduit
Insert pull line through pull line supply, knot it tightly to the shuttle
Place shuttle in the conduit and press EZ300 to the conduit, the front being movable for 360°
Blow shuttle through without interrupting (never without pull line, cannot be retrieved when stuck)
Attach either cable/s or extra strong pull line and start pulling

Equipment

Standard equipment in strong plastic case

complete kit
(article n° 100086)

1 x Stringing Gun EZ300
5 x shuttle complete sets in boxes, free choice of shuttle
1 x box with parachutes:
      1 x for internal conduit Ø of 60 to 100 mm
      1 x for internal conduit Ø of 100 to 150 mm
1 x cone orange, internal conduit Ø from 50,
      to 120 mm, with metallic head, for difficult
      access or frayed conduit end
1 x special equipment for smaller diameter, consisting of special
      black adapter plus special nozzle for int. Ø of 25 to 50 mm
1 x foam collar Ø 140 mm with pull line supply
1 x foam collar Ø 200 mm with pull line supply
1 x injection unit
1 x suction unit
1 x fuel can 0.5 l (empty)
2 x pull line rolls ø 1mm, tensile strength approx 24 kg, roll of
      approx 900 m
1 x box with all assembly material required for shuttle assembling
1 x 2 m air hose connection
1 x operating instruction manual
