Gun EZ50
Tolis Stores / Products / Zeitler - Stringing Guns / Gun EZ50

EZ50EZ50

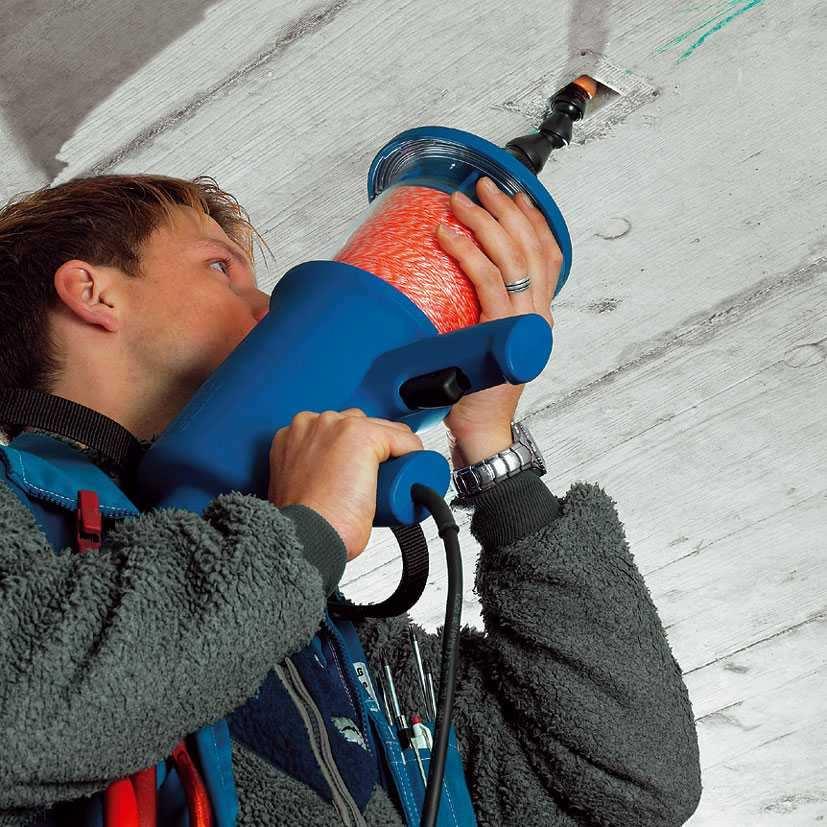

 The Stringing Gun EZ50



The Stringing Gun EZ50 by Zeitler is used to feed a special pull line promptly and efficiently into conduits of Ø 18 to 50 mm (internal diameter) for electrical installation in private construction.

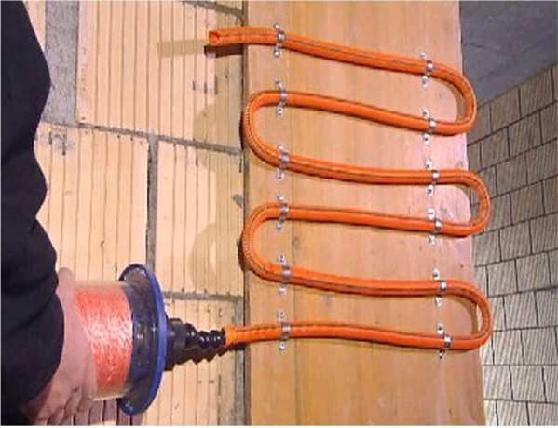

It replaces the classic fishtape and it is easy to apply even in buckled conduits, junction boxes, sockets and plugs.

Facts



stringing gun ez50

EZ50 Stringing Gun

  • Blow in or suck pull line without compressor
  • For all commercial pipe work (internal diameter from 18 to 50 mm)
  • Appropriate for flexible conduits
  • Installations in the range of private, office and industrial buildings
  • Huge time saving in cable feeding

EZ50

EZ50 Complete set

  • Feeding of several hundred meters
  • Lightweight and compact
  • Excellent accessibility, even in confined spaces
  • Easy to handle
  • Double function (blowing and suction mode)
  • Perfect and strong to solve pull line feeding problems
  • Suitable in any car boot
  • Perfect value for money





Application (short guide)

  1. apply line brake
  2. fit joint/nozzle appropriate to int. conduit diameter
  3. firstly blow air trough the conduit, check if penetrable tube/correct tube
  4. make either a loop or fix a bead to the pull line
  5. release line brake
  6. blow pull line in without interrupting, observe uncoilling in cylinder
  7. release switch and close nozzle with a finger
  8. apply line brake and cut off pull line
  9. fix wire/s to the pull line and start pulling





        Equipment

Standard equipment in strong plastic case






EZ50
complete kit













1 x Stringing Gun EZ50
2 x pull line rolls (Ø 1 mm, tensile strength approx 24 kg,
      length approx. 900 m)
1 x Suction device
1 x components set A: 2 joints ½“ reducer 19/12 mm
      plus nozzle int. Ø 9,5 mm
1 x components set B: 3 joints ¾“ nozzle int. Ø 16 mm
      plus nozzle int. Ø 19 mm
1 x special nozzle black, for int. Ø from 25 to 50 mm
1 x special nozzle with 90° angle, Ø ext. 12 mm
      (only with special nozzle black)
3 x beads (round) of Ø 11, 13 and 16 mm each
1 x Operating Instructions



  line

 components set A

Components set B

special pull line tensile
strength 24 kg
box of 10 rolls

Specially engineered pull line ø1 mm made of 100 % Poly-olefine, paraffined (no water absorption), 2-ply double twisted, tensile strength 24 kg.
Coreless cylinder roll to prevent accidents due to jumping rolls.
Packing unit: 1 box with 10 rolls a 900 m.




components Set A

For conduits of internal diameter 18 mm to 20 mm


components Set B

For conduits of internal diameter 20 mm to 26 mm.





special nozzle
beads round
beads round
special nozzle black
For conduits of internal diameter 25 to 50 mm

beads round 5 x 11 mm

beads round 5 x 13 mm




beads round
suction device
special nozzle 90 angle
beads round 5 x 16 mm

suction device

special nozzle
with 90° angle







Product information:

Dimensions: 60 x 40 x 23,5 (cm)

Weight: 9,400 (kg)
