The Stringing Gun EZ100 by Zeitler has been developed especially for network construction such as civil engineering, ground work, roads, tunnels, bridges, etc.
It replaces the classic fishtape and it is suitable for cable ducts from Ø 50 to 150 mm (internal diameter).
The pull line might be blown or aspirated. Water, small residues, impurities or else can often be pushed through with the shuttle in only one operation.
Facts
Blow or suck pull line (tensile strength up to 300 kg) without compressor
For all commercial pipe work (internal diameter from 50 to 150 mm)
With special equipment also for small diameters from 25 mm
For all network construction such as civil engineering, ground work, roads, tunnels, bridges
For lengths of 1000 m and more (current record 2’850 m)

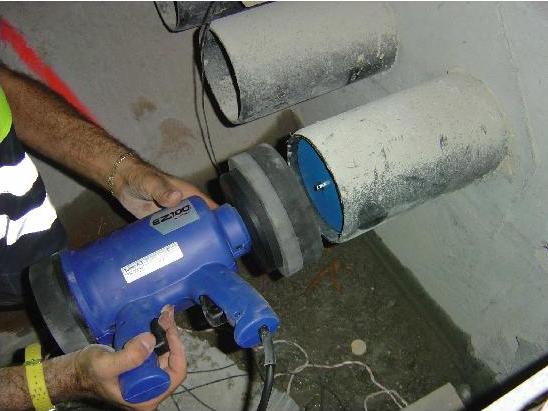

EZ100 Stringing Gun
Huge time saving in cable feeding
Cleaning, taking water out, calibrating and line feeding in one step
EZ100 Complete set
Lightweight and compact
Excellent accessibility, even in confined spaces
Easy to handle
Double function (blowing and suction mode)
Suitable in any car boot
Perfect value for money
Application (short guide)
Conduit ends must be clean and cut off evenly
Firstly, blow air trough the conduit without shuttle, check if penetrable tube/correct tube
Assemble shuttle correspending exactly to the Ø int. of tube
Insert pull line through pull line supply and knot it tightly to the shuttle
Place shuttle in the conduit and press EZ100 to the conduit, the front being movable for 360°
Blow shuttle troug without interrupting
Attach either cable/s or extra strong pull line and start pulling
1 x Stringing Gun EZ100 2 x special pull line rolls (Ø 1 mm, tensile strength approx 24 kg, roll of approx 900 m) 1 x suction unit 5 x small cases with equipment to fix 2 shuttles of each dimension (free selection of 5 diameters) 1 x box with assembly material for shuttles 1 x Operating instructions
special pull line tensile strength 24 Kg box of 10 rolls (article n° 100132)
Shuttle complete set
(for tube dimension internal
ø 20mm,22,24,.....150mm)
